MEMS Stimulus for SPEA Pick & Place Test Handlers
SPEA handlers are complemented by the widest range of stimulus units, so to combine in a single machine all the elements of handling, contacting, and complete testing of MEMS and other devices. SPEA stimulus units can include physical MEMS stimulus, contacting unit, and the required test resources.Everything is designed and manufactured directly by SPEA for the integrated working, providing best technical performance, cost optimization, one-shot factory integration. The cost of test is greatly reduced by the high throughput, lower investment, short application development time and rapid accommodation of different applications.

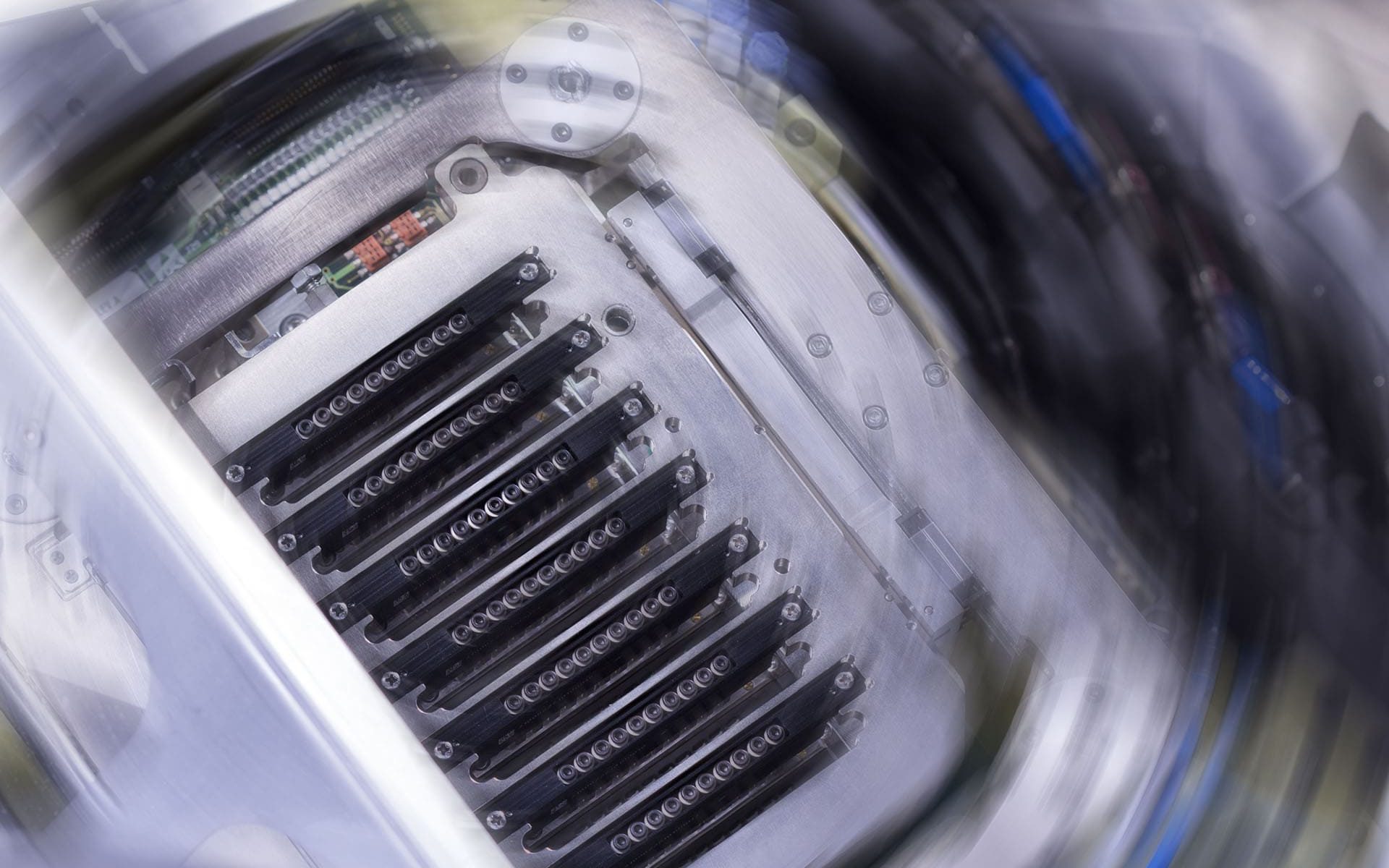

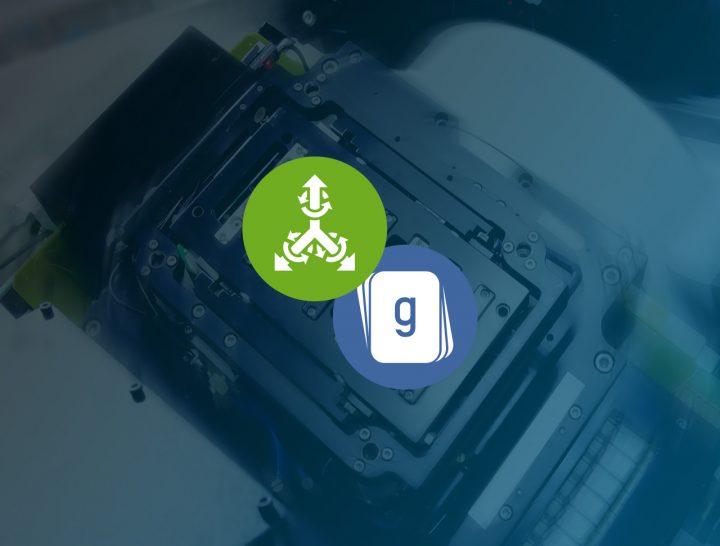

Inertial Sensors
(low g / high g)
Inertial Sensors (low g / high g)
rate tables and shakers
- low-g gyroscope test: constant velocity (trapezoidal profile with programmable velocity), sinusoidal and combined sinusoidal profiles with programmable amplitude and frequency
- low-g accelerometer test: positioning mode
- high g sensors test: up to 40g at 100Hz frequency
- 1,500-wire direct connection for multi-site testing

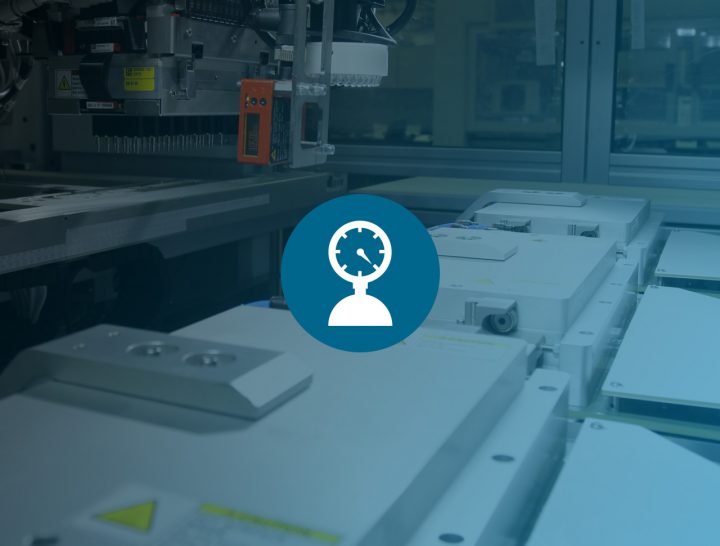

Barometric / TPMS pressure sensors
Barometric / TPMS pressure sensors
pressure chambers
- operating ranges: 0.03 to 0.13 MPa (0.3 to 1.3 barA) or 0.03 to 1.3 Mpa (0.3 to 13 barA)
- best pressure stability: leakage @1.2 MPa (12 bar) <0.1 mbar/s (10 Pa/s)
- up to 3 test stimuli with independent chambers, generators, indicators and contacting units

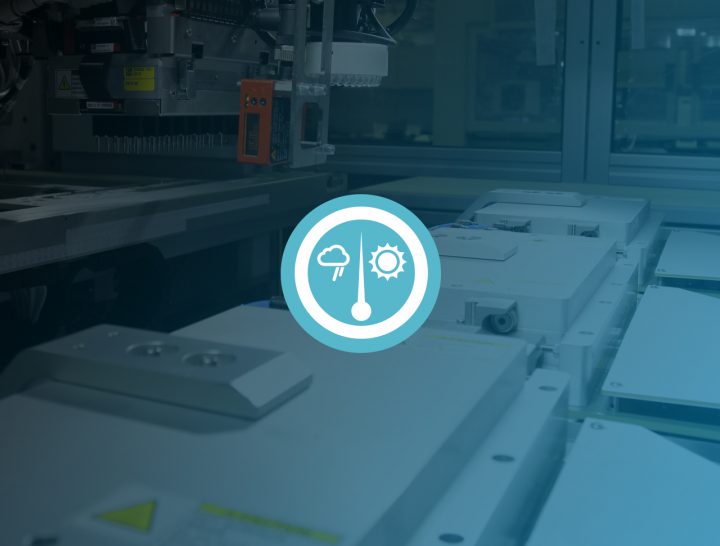

Environmental Sensors
Environmental Sensors
universal chambers
- combined humidity + pressure + temperature + gas stimulus
- relative humidity range: 30% to 70%
- up to 3 test stimuli with independent chambers, generators, indicators and contacting units

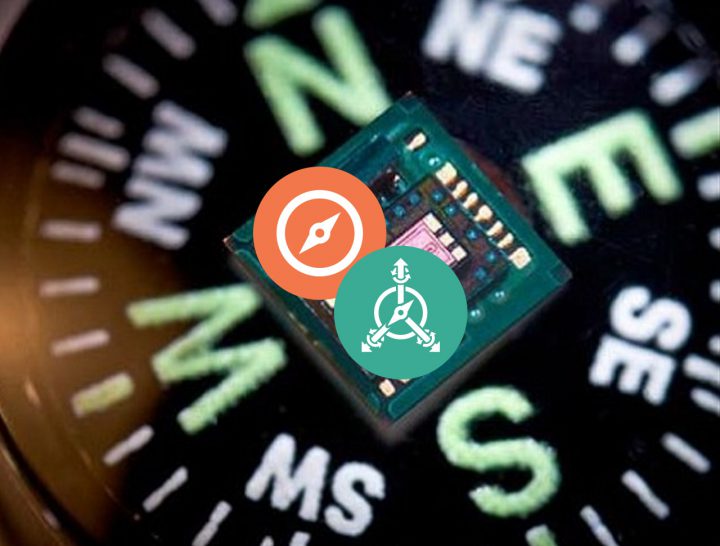

Magnetic Sensors
Magnetic Sensors
3-axis magnetic field generator
- magnetic test unit for geomagnetic sensors
- in-socket magnetic stimulus + inertial + pressure for 6-DoF/9-DoF sensors
- ± 100μT magnetic field range, with 0,025μT accuracy

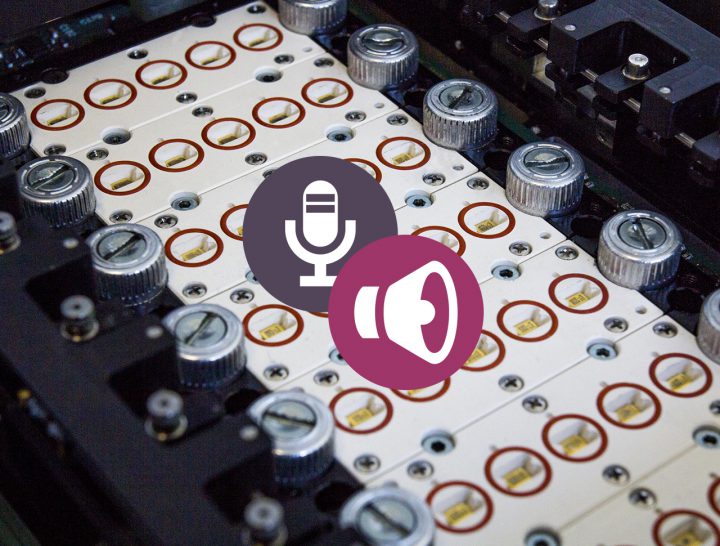

Acoustic MEMS
Acoustic MEMS
acoustic chambers with microphones and speakers
- stimulus for MEMS microphones and speakers
- max sound pressure level @80Hz-4kHz: 130 dBSPL
- max THD @94-130dBSPL (1kHz frequency): 0.1%
Proximity Sensors
Proximity Sensors
optical cameras
- device capability to recognize presence, color and distance of a defined target is verified
- test is performed at different distances, with white-light or IR illuminators, on parallel stations

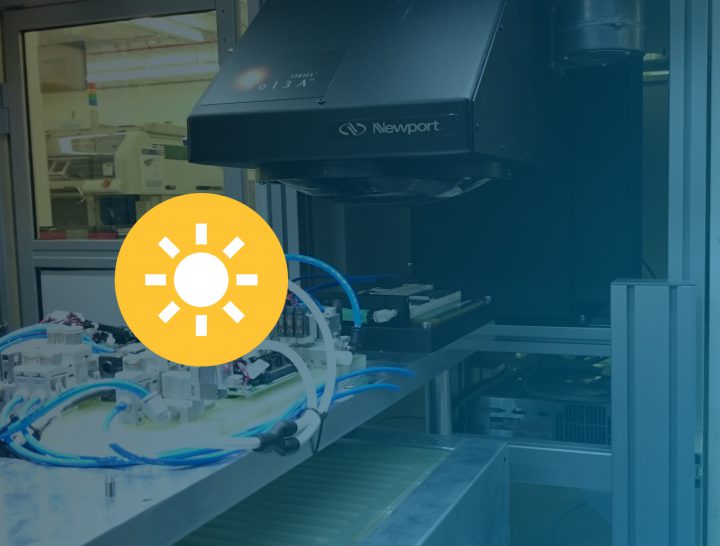

UV Sensors
UV Sensors
solar simulators
- high-accuracy UV sensor test, based on AAA-class solar simulator
- revolver unit to mask loading/unloading time
- embedded tester with direct socket board connection

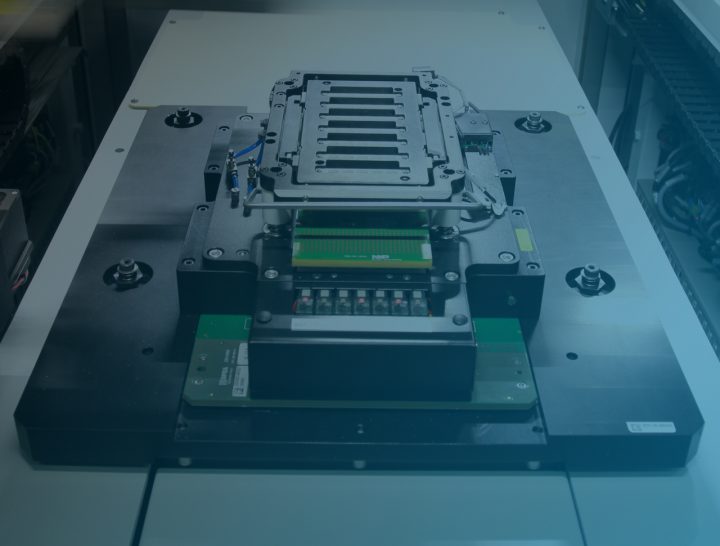

Other Devices
Other Devices
test jig receiver
- contacting unit accomodation
- tester connection
- controller for presser mechanism
